Actuator Selection Table
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
ADVANTAGES OF FIRESTONE ACTUATORS
LOW COST Generally, initial cost is one-half or less than conventional pneumatic or hydraulic cylinders of the same force capabilities. This initial cost advantage is many times greater in the larger sizes.
WIDE SIZE RANGE Airstroke actuators are available in sizes ranging from 2.2 inches to 37 inches in diameter. The force capability is 100,000 pounds. Strokes of up to 14 inches are possible.
DURABLE FOR LONG LIFE Airstroke actuators are a further application of Firestone’s time proven Airide springs for truck and bus suspensions. The long life and durability necessary for millions of miles of heavy duty suspension use under adverse environmental conditions are also important factors in machine design.
NO MAINTENANCE OR LUBRICATION REQUIRED
NO INTERNAL ROD OR PISTON Airstroke actuators have no internal rod, piston, or sliding seals as do conventional cylinders. This allows for the design of Airstroke actuators into applications where dirt or grit would destroy the seals on conventional cylinders.
FRICTION FREE FOR IMMEDIATE RESPONSE Since Airstroke actuators have no sliding seals, there is no breakaway friction as with conventional cylinders
FLEXIBLE MEDIA An Airstroke actuator can do its work with either a liquid or gas
ANGULAR CAPABILITY An Airstroke possesses the unique capability of stroking through an arc without a clevis. Angular motion of up to 30 degrees is possible, along with the design advantage of generally less complex linkages.
Style 110
| Style 110 (2 ply) | Blind nuts, 1/4'' | W01-358-7451 |
| Style 110 (2 ply) | Blind nuts, 3/4'' | W01-358-7484 |
| Style 110 (2 ply) | Socket head alum. bead ring (bolts, nuts, washers not included, use 1/4'' cap screws) | W01-358-0112 |
| Style 110 (2 ply) | Rubber bellows only | W01-358-0100 |
| Assembly weight | 3.0 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.

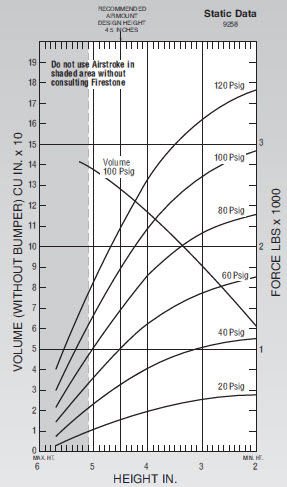

PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 110493.94 KB
Style 113
| Style 113 (2 ply) | Blind nuts, 1/4'' | W01-358-7103 |
| Style 113 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-7104 |
| Style 113 (2 ply) | Blind nuts, 3/4'' | W01-358-7101 |
| Style 113 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-7109 |
| Style 113 (2 ply) | Countersunk steal bead rings, 1¾'' bolts, nuts, washers | W01-358-7110 |
| Style 113 (2 ply) | Blind nuts, 1/8'' | W01-358-7113 |
| Style 113 (2 ply) | Blind nuts, 1¼'' | W01-358-7114 |
| Style 113 (2 ply) | Rubber bellows only | W01-358-0135 |
| Assembly weight | 14.5 lbs. | |
| Style 128 (High Strength) | Blind nuts, 1/4'' | W01-358-8151 |
| Style 128 (High Strength) | Blind nuts, 1/4'', bumper | W01-358-8149 |
| Style 128 (High Strength) | Blind nuts, 3/4'' | W01-358-8152 |
| Style 128 (High Strength) | Blind nuts, 3/4'', bumper | W01-358-8150 |
| Style 128 (2 ply) | Rubber bellows only | W01-358-0231 |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 113495.47 KB
Style 113-1
| Style 113-1 (2 ply) | Blind nuts, 1/4'' | W01-358-7091 |
| Style 113-1 (2 ply) | Blind nuts, 3/4'' | W01-358-7092 |
| Style 113-1 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-7094 |
| Style 113-1 (2 ply) | Countersunk steal bead rings, 1¾'' bolts, nuts, washers | W01-358-7277 |
| Style 113-1 (2 ply) | Rubber bellows only | W01-358-0150 |
| Assembly weight | 15.2 lbs. | |
| Style 128-1 (High Strength) | Blind nuts, 1/4'' | W01-358-8161 |
| Style 128-1 (High Strength) | Blind nuts, 3/4'' | W01-358-8160 |
| Style 128-1 (High Strength) | Blind nuts, 3/4'', bumper | W01-358-8162 |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 113-1496.77 KB
Style 115
| Style 115 (2 ply) | Blind nuts, 1/4'' | W01-358-7460 |
| Style 115 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-7459 |
| Style 115 (2 ply) | Blind nuts, 3/4'' | W01-358-74605 |
| Style 115 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-7458 |
| Style 115 (2 ply) | Countersunk steal bead rings, 1⅝'' bolts, nuts, washers | W01-358-7469 |
| Style 115 (2 ply) | Blind nuts, 3/4'' both ends (centered) | W01-606-7115 |
| Style 115 (2 ply) | Rubber bellows only | W01-358-0118 |
| Assembly weight | 5.5 lbs. | |
| Style 124 (High Strength) | Blind nuts, 1/4'' | W01-358-7650 |
| Style 124 (High Strength) | Blind nuts, 3/4'' | W01-358-7649 |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 115495.67 KB
Style 116
| Style 116 (2 ply) | Blind nuts, 1/4'' | W01-358-7564 |
| Style 116 (2 ply) | Blind nuts, 3/4'' | W01-358-7561 |
| Style 116 (2 ply) | Countersunk steal bead rings, 1¾'' bolts, nuts, washers | W01-358-7568 |
| Style 116 (2 ply) | Blind nuts with installed 1/4'' tank valve | W01-A72-7518 |
| Style 116 (2 ply) | Rubber bellows only | W01-358-0133 |
| Assembly weight | 4.3 lbs. | |
| Style 117 (High Strength) | Blind nuts, 1/4'' | W01-358-7600 |
| Style 117 (High Strength) | Blind nuts, 3/4'' | W01-358-7602 |
| Style 117 (High Strength) | Countersunk steal bead rings, 1¾'' bolts, nuts, washers | W01-358-7606 |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 116494.37 KB
Style 116-1
| Style 116-1 (2 ply) | Blind nuts, 1/4'' | W01-358-7598 |
| Style 116-1 (2 ply) | Blind nuts, 3/4'' | W01-358-7605 |
| Assembly weight | 4.5 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 116-1493.48 KB
Style 119
| Style 119 (2 ply) | Ribbed neck aluminum bead rings (equal spacing), 1⅞” bolts, nuts, washers | W01-358-7478 |
| Style 119 (2 ply) | Rubber bellows only | W01-358-0119 |
| Style 119 (2 ply) | Rolled plate assembly, ½” blind nuts, ¾” | W01-358-7477 |
| Assembly weight | 13.2 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 119495.75 KB
Style 121
| Style 121 (2 ply) | Ribbed neck aluminum bead rings, 1⅞” bolts, nuts, washers | W01-358-7197 |
| Style 121 (2 ply) | Rubber bellows only | W01-358-5135 |
| Style 121 (2 ply) | Rolled plate assembly, ½” blind nuts, ¾” | W01-358-7272 |
| Assembly weight | 16.5 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 121495.36 KB
Style 126
| Style 126 (2 ply) | Ribbed neck aluminum bead rings (equal spacing), 1⅞” bolts, nuts, washers | W01-358-7727 |
| Style 126 (2 ply) | Rolled plate assembly, ½” blind nuts, ¾” | W01-358-7726 |
| Style 126 (2 ply) | Rubber bellows only | W01-358-1026 |
| Assembly weight | 21.3 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 126496.83 KB
Style 131
| Style 131 (2 ply) | Blind nuts, 1/4'' | W01-358-7731 |
| Style 131 (2 ply) | Blind nuts, 3/4'' | W01-358-7742 |
| Style 131 (2 ply) | Socket head alum. bead ring (bolts, nuts, washers not included, use 1/4'' cap screws) | W01-358-0127 |
| Style 131 (2 ply) | 3/4'' (only) upper plate, blind nuts lower plate | W01-358-7729 |
| Style 131 (2 ply) | Rubber bellows only | W01-358-0131 |
| Assembly weight | 2.8 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 131495.35 KB
Style 138-1.5
| Style 138-1.5 (High Strength) | Ribbed neck aluminum bead rings (equal spacing), 1⅞” bolts, nuts, washers | W01-358-7737 |
| Style 138-1.5 (High Strength) | Rubber bellows only | W01-358-0147 |
| Assembly weight | 24.5 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 138-1.5496.77 KB
Style 148-1
| Style 148-1 (High Strength) | Ribbed neck aluminum bead rings (equal spacing), 1⅞” bolts, nuts, washers | W01-358-9601 |
| Style 148-1 (High Strength) | Rubber bellows only | W01-358-1021 |
| Assembly weight | 46.3 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 148-1499.55 KB
Style 153-2
| Style 153-2 (2 ply) | Blind nuts, 1/4'' | W01-358-8158 |
| Style 153-2 (2 ply) | Blind nuts, 3/4'' | W01-358-8157 |
| Style 153-2 (2 ply) | Ribbed neck aluminum bead rings (equal spacing), 1⅞” bolts, nuts, washers | W01-358-8165 |
| Style 153-2 (2 ply) | Rubber bellows only | W01-358-1201 |
| Assembly weight | 17.1 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 153-2494.29 KB
Style 16
| Style 16 (2 ply) | Blind nuts, 1/4'' | W01-358-7001 |
| Style 16 (2 ply) | Blind nuts, 3/4'' | W01-358-6996 |
| Style 16 (2 ply) | Socket head alum. bead ring (bolts, nuts, washers not included, use 1/4'' cap screws) | W01-358-0017 |
| Style 16 (2 ply) | 3/4'' (only) upper plate, blind nuts lower plate | W01-358-0286 |
| Style 16 (2 ply) | Rubber bellows only | W01-358-0010 |
| Assembly weight | 2.5 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 16496.02 KB
Style 16-ST
| Style 16-ST (2 ply) | Blind nuts, 1/4'' | W02-358-5000 |
| Style 16-ST (2 ply) | Stainless steel plates | W01-358-7609 |
| Assembly weight | 1.25 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 16-ST494.97 KB
Style 160
| Style 160 (2 ply) | Blind nuts, 1/4'' | W01-358-7751 |
| Style 160 (2 ply) | Blind nuts, 3/4'' | W01-358-7752 |
| Style 160 (2 ply) | Socket head alum. bead ring (bolts, nuts, washers not included, use 1/4'' cap screws) | W01-358-7592 |
| Assembly weight | 3.0 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 160493.54 KB
Style 19
| Style 19 (2 ply) | Blind nuts, 1/4'' | W01-358-7008 |
| Style 19 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-7009 |
| Style 19 (2 ply) | Blind nuts, 3/4'' | W01-358-7011 |
| Assembly weight | 9.8 lbs. | |
| Style 19 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-7012 |
| Style 19 (2 ply) | Countersunk steal bead rings, 1⅝'' bolts, nuts, washers | W01-358-7023 |
| Style 19 (2 ply) | Rubber bellows only | W01-358-0134 |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 19494.67 KB
Style 19-.75
| ▼PRODUCT | ▼DESCRIPTION | ▼Assembly Order № |
| Style 19-.75 (2 ply) | Blind nuts, 1/4'' | W01-358-7040 |
| Style 19-.75 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-7039 |
| Style 19-.75 (2 ply) | Blind nuts, 3/4'' | W01-358-7042 |
| Style 19-.75 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-7043 |
| Style 19-.75 (2 ply) | Countersunk steal bead rings, 1⅝'' bolts, nuts, washers | W01-358-6896 |
| Assembly weight | 10.0 lbs. |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 19-.75495.64 KB
