Actuator Selection Table
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
ADVANTAGES OF FIRESTONE ACTUATORS
LOW COST Generally, initial cost is one-half or less than conventional pneumatic or hydraulic cylinders of the same force capabilities. This initial cost advantage is many times greater in the larger sizes.
WIDE SIZE RANGE Airstroke actuators are available in sizes ranging from 2.2 inches to 37 inches in diameter. The force capability is 100,000 pounds. Strokes of up to 14 inches are possible.
DURABLE FOR LONG LIFE Airstroke actuators are a further application of Firestone’s time proven Airide springs for truck and bus suspensions. The long life and durability necessary for millions of miles of heavy duty suspension use under adverse environmental conditions are also important factors in machine design.
NO MAINTENANCE OR LUBRICATION REQUIRED
NO INTERNAL ROD OR PISTON Airstroke actuators have no internal rod, piston, or sliding seals as do conventional cylinders. This allows for the design of Airstroke actuators into applications where dirt or grit would destroy the seals on conventional cylinders.
FRICTION FREE FOR IMMEDIATE RESPONSE Since Airstroke actuators have no sliding seals, there is no breakaway friction as with conventional cylinders
FLEXIBLE MEDIA An Airstroke actuator can do its work with either a liquid or gas
ANGULAR CAPABILITY An Airstroke possesses the unique capability of stroking through an arc without a clevis. Angular motion of up to 30 degrees is possible, along with the design advantage of generally less complex linkages.
Style 110/70
| Style 110/70 (2 ply) | Blind nuts, 1/4'' | W26-358-9004 |
| Assembly weight | 2.8 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 110-70491.62 KB
Style 1T12E-3
| Style 1T12E-3 (2 ply) | Blind nuts, 1/4'' | W01-358-8119 OBSOLETE |
| Style 1T12E-3 (2 ply) | Socket head alum. bead ring (bolts, nuts, washers not included, use cap screws) | W01-358-8118 |
| Assembly weight | 3.5 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T12E-3497.04 KB
Style 1T15L-4
| Style 1T15L-4 (2 ply) | Blind nuts, 1/4'' | W01-358-9414 |
| Assembly weight | 15.5 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T15L-4496.07 KB
Style 1T15M-0
| Style 1T15M-0 (2 ply) | Blind nuts, 1/4'' | W01-358-9030 |
| Style 1T15M-0 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-9031 |
| Style 1T15M-0 (2 ply) | Blind nuts, 3/4'' | W01-358-9034 |
| Style 1T15M-0 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-9036 |
| Style 1T15M-0 (2 ply) | Countersunk steal bead rings, 1⅜'' bolts, nuts, washers | W01-358-9038 |
| Style 1T15M-0 (2 ply) | Integral studs, 1/4'' | W01-358-9035 |
| Assembly weight | 11.5 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T15M-0496.7 KB
Style 1T15M-2
| Style 1T15M-2 (2 ply) | Blind nuts, 1/4'' | W01-358-9042 |
| Style 1T15M-2 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-9053 |
| Style 1T15M-2 (2 ply) | Blind nuts, 3/4'' | W01-358-9054 |
| Style 1T15M-2 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-9099 |
| Assembly weight | 13.2 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T15M-2496.69 KB
Style 1T15M-4
| Style 1T15M-4 (2 ply) | Blind nuts, 1/4'' | W01-358-9056 |
| Style 1T15M-4 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-9057 |
| Style 1T15M-4 (2 ply) | Blind nuts, 3/4'' | W01-358-9062 |
| Style 1T15M-4 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-9060 |
| Assembly weight | 14.3 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T15M-4496.41 KB
Style 1T15M-6
| Style 1T15M-6 (2 ply) | Blind nuts, 1/4'' | W01-358-9079 |
| Style 1T15M-6 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-9096 |
| Style 1T15M-6 (2 ply) | Blind nuts, 3/4'' | W01-358-9089 |
| Style 1T15M-6 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-9088 |
| Style 1T15M-6 (2 ply) | Blind nuts, 3/4'', (piston not included) | W01-358-0730 |
| Assembly weight | 15.7 lbs. | (bead plate version, no bumper) |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T15M-6496.8 KB

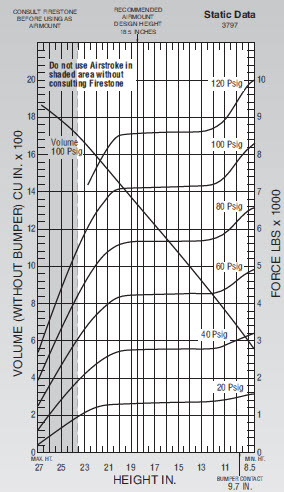

Style 1T15M-9
| Style 1T15M-9 (2 ply) | Blind nuts, 1/4'' | W01-358-9108 |
| Style 1T15M-9 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-9104 |
| Style 1T15M-9 (2 ply) | Blind nuts, 3/4'' | W01-358-9106 |
| Style 1T15M-9 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-9117 |
| Assembly weight | 18.0 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T15M-9496.96 KB
Style 1T15S-6
| Style 1T15S-6 (2 ply) | Blind nuts, 1/4'' | W01-358-9048 |
| Style 1T15S-6 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-9049 |
| Style 1T15S-6 (2 ply) | Blind nuts, 3/4'' | W01-358-9051 |
| Assembly weight | 13.7 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T15S-6496.42 KB
Style 1T15T-1
| Style 1T15T-1 (2 ply) | Blind nuts, 1/4'' | W01-358-9400 |
| Style 1T15T-1 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-9402 |
| Style 1T15T-1 (2 ply) | Blind nuts, 3/4'' | W01-358-9401 |
| Assembly weight | 10.4 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T15T-1496.26 KB
Style 1T19L-11
| Style 1T19L-11 (2 ply) | Blind nuts, 1/4'' | W01-358-9155 |
| Style 1T19L-11 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-9156 |
| Style 1T19L-11 (2 ply) | Blind nuts, 3/4'' | W01-358-9153 |
| Style 1T19L-11 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-2132 |
| Style 1T19L-11 (2 ply) | Countersunk steal bead rings, 1¾'' bolts, nuts, washers | W01-358-9162 |
| Assembly weight | 22.6 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T19L-11498.68 KB
Style 1T19L-7
| Style 1T19L-7 (2 ply) | Blind nuts, 1/4'' | W01-358-9148 |
| Style 1T19L-7 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-9149 |
| Style 1T19L-7 (2 ply) | Blind nuts, 3/4'' | W01-358-9172 |
| Style 1T19L-7 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-9160 |
| Style 1T19L-7 (2 ply) | Countersunk steal bead rings, 1¾'' bolts, nuts, washers | W01-358-9165 |
| Assembly weight | 24.60 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T19L-7498.37 KB
Style 4001
| Style 4001 (2 ply) | Blind nuts, 1/8'' | W02-358-4001 |
| Assembly weight | 1.0 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 4001494.16 KB
Style 7002
| Style 7002 (2 ply) | Blind nuts, 1/8'' | W02-358-7002 |
| Assembly weight | 1.8 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 7002495.97 KB
Style 7010
| Style 7010 (2 ply) | Blind nuts, 1/8'' | W02-358-7010 |
| Assembly weight | 1.6 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 7010492.49 KB
Style 7012
| Style 7012 (2 ply) | Blind nuts, 1/8'' | W02-358-7012 |
| Assembly weight | 1.8 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 7012496.03 KB
Style1T14C-1
| Style 1T14C-1 (2 ply) | Blind nuts, 1/4'' | W01-358-5310 |
| Style 1T14C-1 (2 ply) | Blind nuts, 1/4'', bumper | W01-358-5311 |
| Style 1T14C-1 (2 ply) | Blind nuts, 3/4'' | W01-358-5305 |
| Style 1T14C-1 (2 ply) | Blind nuts, 3/4'', bumper | W01-358-5306 |
| Style 1T14C-1 (2 ply) | Countersunk steal bead rings, 1¾'' bolts, nuts, washers | W01-358-5307 |
| Assembly weight | 6.5 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T14C-1496.49 KB
Style1T14C-3
| Style 1T14C-3 (2 ply) | Blind nuts, 1/4'' | W01-358-5405 |
| Assembly weight | 6.8 lbs. | |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T14C-3495.88 KB
Style1T14C-7
| Style 1T14C-7 (2 ply) | Blind nuts, 1/4'' | W01-358-5712 |
| Style 1T14C-7 (2 ply) | Blind nuts, 3/4'' | W01-358-5708 |
| Assembly weight | 7.0 lbs. | |
| Style 1T28C-7 (High Strength) | Blind nuts 1/4'' | W01-358-5743 |
| ▲PRODUCT | ▲DESCRIPTION | ▲Assembly Order № |
The static data chart below is also referred to as the load/deflection (L/D) curve for an air spring.
PERFORMANCE GRAPH
Airstroke™ actuators are used as a short stroke, high force, single acting pneumatic actuator. Its unique capabilities make it ideal for friction free, leak free, flexible force applications.
Style 1T14C-7496.47 KB
